Costa Power Industries Pvt. Ltd. is a having global exposure as Manufacturers, Suppliers, Distributor and dealers of ups system, uninterruptible power supplier, ups power suppliers in mumbai, Delta ups suppliers in mumbai, Delta ups dealers, Delta ups dealers in Mumbai. As headquarter is in economic capital of India, located in Mumbai and branches at PAN India. Costa Power Industries Pvt. Ltd. had started its operation in the field Since year successfully offering turnkey project services in the field of Electrical, Automation, Instrumentation, Energy Saving and Control with qualified & experience working team with solid technical background.

Costa Power Industries Pvt. Ltd. is ups suppliers, ups dealers chain of ups manufacturers, ups dealers in mumbai of global distributors such as delta ups, delta line interactive ups, single phase ups, digital ups, delta modular ups, line interactive ups,three phase ups, delta online ups, delta offline ups, line interactive delta ups etc. Costa power provides battery backup system with customized solutions and ups preventive maintenance services, ups amc nationwide with a strong presence in the thane, Mumbai, Mumbai Suburbs, Maharashtra interior parts and in India.

Costa power design, build and service for Data centers, Communication networks, Commercial and industrial applications We support today with a portfolio of power, thermal and infrastructure management solutions by help of principal Company Vertiv. Costa Power offer unsurpassed global scale and broad expertise, built from our heritage as top ups dealers in Mumbai and providing Delta ups distributors in Mumbai.

Product

Costa believe in Innovation which enabling flexible and Fast deployment, turnkey project solutions and seamless service Intelligent systems for smart,& holistic network Products, solutions, services and expertise for Delta ups in Mumbai, and PAN India level as suppliers and distributors.

Costa have not only Expertise from design but commissioning derived from experience Innovative solutions that reduce costs, and speed deployment World-class services that drive uptime and deliver insights into performance Product, system and integrated solutions for Delta ups dealers in thane and Delta ups suppliers in Navi Mumbai with the exposure of across Maharashtra and in India.

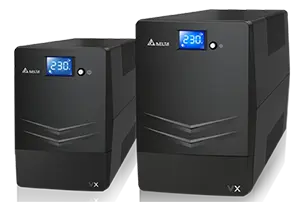

Model VX-600VA VX-1000VA
Part No. UPA601V2100B0 UPA102V2100B0
Power Rating 600VA / 360W 1000VA / 600W
Input Nominal Voltage 230 Vac
Voltage Range 140 ~ 300 Vac (full load)
Nominal Frequency 50 /60 Hz
Output Voltage 230 Vac ± 10% (Battery mode)
Frequency Range 50 / 60 Hz ± 1 Hz
Waveform (Batt. Mode) Simulated Sinewave
Receptacle India Socket x 3 India Socket x 4
Battery Battery Type & Number 12V / 7 Ah x 1 12V / 7 Ah x 2
Recharge Time 4 ~ 6 hours to 90%
Cold Start Yes
Indicator LED
Communication Interfaces Standard N/A USB Port x 1
Environment Operating Temperature 0 ~ 40ºC
Altitude 0 ~ 1000m
Relative Humidity 0 ~ 90% (non-condensing)
Audible Noise 40 dB
Conformance Safety BIS
Physical Dimensions (W x D x H) 101 x 279 x 142 mm 130 x 320 x 182 mm
Net Weight 4.2 kg 7.8 kg
Reliability
  • The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality
  • Excellent microprocessor control enables accurate detection of power frequency for higher reliability
  • Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time
  • Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start)
  • UPS is able to restart automatically while utility power is recovering
  • Surge protection defends your critical load against damage

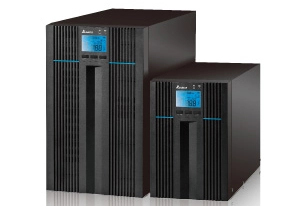

Model INX-1K INX-2K INX-3K
Power Rating 1kVA/0.8kW 2kVA/1.6kW 3kVA/2.4kW
Input Nominal Voltage 230 Vac
Voltage Range 110 ~ 300 Vac*
Frequency 40 ~ 70 Hz
Power Factor 0.99 @ nominal voltage (input voltage)
Output Power Factor 0.8
Voltage 200**/ 208**/ 220/ 230/ 240 Vac
Voltage Regulation ± 1% (Battery mode)
Frequency 47 ~ 53 Hz or 57 ~ 63 Hz (Syncronized Range)
Current Harmonic Distortion ≤ 3% (linear load); ≤ 6% (non-linear load)
Overload Capability 105%: Continuous; 105% ~ 110%: 10 minutes; 110% ~ 130%: 1 minute; > 130% only 3 seconds
Crest Factor 3:1
Receptacle Standard Model India socket x 3 India socket x 4 India socket x 4 + Terminal block x 1
Long Backup Model India socket x 2 India socket x 2 + Terminal block x 1
Efficiency Online Mode 88% 89% 90%
Battery Voltage Standard Model 24 Vdc 48 Vdc 72 Vdc
Long Backup Model 36 Vdc 72 Vdc 72 Vdc
Charger Current Standard Model 1A
Long Backup Model 1/ 2/ 4/ 6A
Audible Noise 50dBA @ 1 meter
Display LCD
Communication Interfaces Standard/ Long Backup Mini Slot x 1, RS-232 Port x 1, USB Port x 1
Dimensions
(W x D x H)
Standard Model 282 x 145 x 220 mm 504 x 145 x 220 mm 421 x 190 x 318 mm
Long Backup Model 282 x 145 x 220 mm 397 x 145 x 220 mm
Weight Standard Model 9 kg 16.5 kg 25 kg
Long Backup Model 4.4 kg 7.3 kg 7.8 kg
Environment Operating Temperature 0 ~ 40°C
Relative Humidity 20% ~ 90% (non-condensing)
Availability
  • True online double-conversion topology and zero transfer time to battery ensure high reliability
  • High input power factor corrector (> 0.99) for controlled sine wave AC output
  • Cold-start capability with temporary battery power when the utility power is out
  • Automatic bypass to transfer the load on mains in case of overload & internal fault
  • Battery deep discharge protection
Flexibility
  • Excellent local communications through user friendly LCD display
  • Intelligent management software connectivity via RS232, mini slot or USB port
  • Three multi-functional buttons for the operation and selection of parameters
Technical Specifications

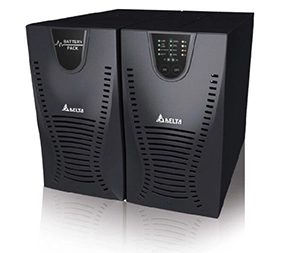

Model E - 1K E - 2K E - 3K
Power Rating 1KVA / 700W 2KVA / 1400W 3KVA / 2100W
Input Nominal Voltage 230 Vac (Single Phase)
Voltage Range 80 ~ 280 Vac (Full Load)*
Frequency 40 ~ 70 Hz
Power Factor 0.97
Electrical Connection IEC320 C14 IEC320 C20 IEC320 C20
Voltage 230 Vac (Single phase)
Output Voltage Regulation ± 2% )
Frequency 50 or 60 ± 0.05 Hz
Trasient Response < 8% (10 ~ 90% linear load)
Trasient Response ≤ 3% (linear load)
Overload Capability 105% ~ 125%: 3 minutes; 125% ~ 150%: 30 Seconds; > 150% _> 0.5 seconds
Receptacle India type 10A x 2
Battery Rating Voltage 36 Vdc 72 Vdc 72 Vdc
Charge Current Built-in : 4A (adjustable), Extra Charge (optional) : 4A (external installation)
Electrical Connection Terminal Block
Interface Standard RS232 X 1, Smart slot X 1
Conformance Safety & EMC CISPR 22 Class A
Other Features AC - Start & Battery - start Yes
External Battery Pack Optional
Efficiency AC ~ AC > 87% (Full Load)
Environment Operating Temperature 0 ~ 400C
Relative Humidity 0 ~ 90% (non-condensing)
Audible Noise (at one meter) 45 dBA 54 dBA 54 dBA
Physical Dimensions
(W x D x H)
140 X 362 X 267 mm
Weight 5 kg 7 kg 7 kg
